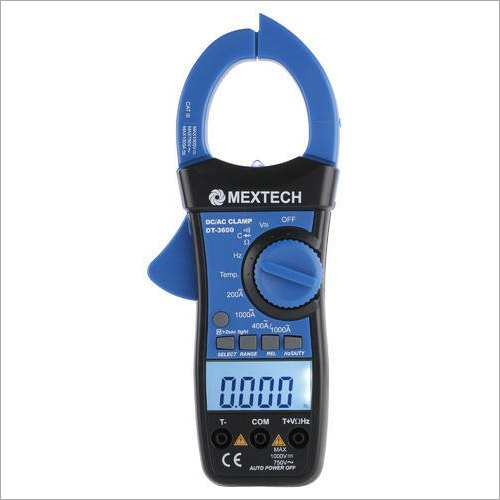

Digital Clamp Multimeter
Product Details:
Digital Clamp Multimeter Price And Quantity
- 1 Piece
- 2000.00 - 3000.00 INR/Piece
Digital Clamp Multimeter Trade Information
- 7 Piece Per Day
- 7 Days
Product Description
Digital Clamp Multimeter is the one used to measure current and probes measure voltage. Having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure current in that circuit without disconnecting/deenergizing it. Digital Clamp Multimeter can be availed from us at competitive rates.
Specification
| Battery | 2 x1.5V AAA size batteries |
| DC Voltage | 1000V |
| DC Current | 20A |
| Model Number | DT17B |
| Digit Display | 3 Digit |
Features:
- Display: 3 ¼ digits with 4000 Counts
- Operation: Automatic or manual range
- Diode and continuity test
- Auto range Duty cycle
- Buzz off: <30Ω ± 10Ω
- Insufficient battery tips: Lower than about 2.4V
- Data retention
- Automatic shutdown: After 15 min
- Functions
- The greatest show: 4000
Specifications:
| Basic functions | Range | Basic accuracy |
| DC voltage | 400mV/4V/40V/400V/1000V | ± (0.5% 4) |
| AC voltage | 4V/40V/400V/1000V | ± (0.8% 6) |
| DC current | 400 m A/4000 m A/40mA/400mA/20A | ± (1.0% 5) |
| AC current | 400 m A/4000 m A/40mA/400mA/20A | ± (1.5% 5) |
| Resistance | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ± (0.8% 1) |
| Capacitance | 4nF/40nF/400nf/4 m F/40 m F/200 m F | ± (3.5% 8) |
| Frequency | 100Hz/1KHz/10KHz/100KHz/1MHz/10MHz | ± (0.5% 4) |
| Temperature | -40 ~ 1000 | - |
